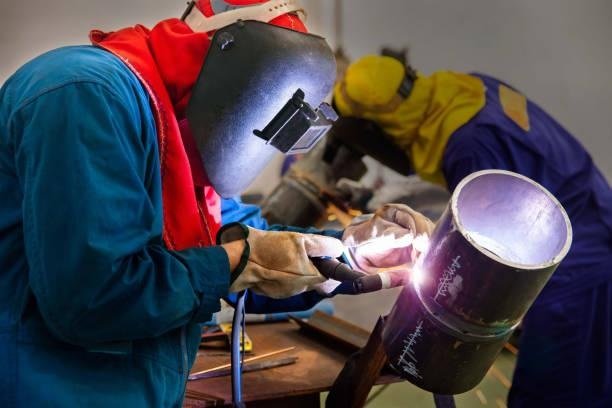

An expert welder welding the steel pipe with Tungsten Inert Gas Welding process (TIG)
TIG welding is a popular method for achieving precise and high-quality welds. This welding method stands out for producing solid and clean welds with minimal spatter when welding steel. TIG welding offers excellent control and precision, making it ideal for intricate projects and applications requiring a high level of detail. This makes it perfect for steel welding projects, from detailed artistic work to critical structural steel parts.
This guide will take you through the step-by-step process of TIG welding steel, making it accessible whether you’re a beginner looking to learn a new skill or an experienced welder seeking to refine your technique. We’ll dive into the basics of TIG welding and then move on to the steps you’ll need to follow to weld steel like a pro.
What Is TIG Welding?
The welder is welding with gas tungsten arc welding process to the weldolet on the pipe
Tungsten Inert Gas welding, also known as Gas Tungsten Arc Welding, is a welding process that uses a non-consumable tungsten electrode to produce the weld. This method is known for its precision and control, making it a preferred choice for projects that require quality and clean welds. The process involves using an inert gas, typically argon, to protect the weld area from contamination, ensuring a strong and durable joint.
Unlike other welding methods, TIG welding allows precise control over the heat input and welding speed. This control is achieved using a foot pedal or fingertip control, which adjusts the current and, consequently, the heat produced by the tungsten electrode. This feature makes TIG welding especially suitable for thin materials and detailed work.
One of the standout features of TIG welding is the quality of the welds it produces. The process creates clean, aesthetically pleasing welds with minimal spatter and distortion. This quality is essential for projects where the appearance of the weld is crucial, such as in custom metalwork and artistic applications. Another critical aspect of TIG welding is its versatility. It can weld various metal grades, including steel, aluminum, and stainless steel. This versatility makes it a valuable skill for welders working in different industries.
Despite its many advantages, TIG welding requires a high level of skill and practice. The welder must maintain a steady hand and precise control over the welding torch, filler rod, and foot pedal. Additionally, TIG welding can be more time-consuming than other methods, so it is often reserved for projects where precision and weld quality are more important than speed.
How to TIG Weld Steel – Step-by-Step Process
A welder TIG welding a steel plate to the pipe
TIG welding steel might seem challenging initially, but with the proper guidance and practice, you’ll be crafting clean, strong welds in no time.
Here’s a step-by-step guide to help you get started.
- Prepare Your Materials and Workspace
Foremost, ensure your workspace is clean, well-lit, and well-ventilated. TIG welding produces fumes, so proper ventilation is crucial for your safety. Gather all necessary materials: your TIG welder, tungsten electrode, filler rod, safety gear, and steel pieces. Then, clean the steel workpiece thoroughly to remove any rust, oil, or dirt using a wire brush or chemical cleaner. Any contaminants can weaken the weld, so a clean surface is essential for a strong bond.
- Select the Right Tungsten Electrode
You must choose the right tungsten electrode to obtain a quality TIG weld successfully. A 2% thoriated tungsten electrode (red tip) is a good choice for welding steel due to its excellent arc stability. Sharpen the tungsten to a point using a dedicated grinder to avoid contamination from other metals. A sharp electrode helps achieve a precise arc, crucial for clean, accurate welds.
- Set Up Your TIG Welder
Next is setting up your TIG welder. Connect the torch, ground clamp, and gas supply. Use pure argon as the shielding gas and set the flow rate to around 15 to 20 cubic feet per hour (CFH). Adjust the amperage based on the thickness of the steel you’re welding. A general rule of thumb is 1 amp per 0.001 inch of material thickness. For 1/8-inch steel, set the welder to around 125 amps. Also, the polarity should be set to DCEN (Direct Current Electrode Negative), suitable for welding steel.
- Tack Weld the Pieces Together
When working with steel, especially thicker pieces, tack welds help maintain structural integrity and alignment throughout the welding process. So before starting the full weld, use tack welds to hold the pieces in place. Position the steel pieces as you want, and apply small, quick welds at the joints to secure them. This step ensures the pieces stay aligned during welding and prevents warping.
- Initiate the Arc
To start welding, initiate the arc by stepping on the foot pedal or using the torch button. Hold the torch at a 10 to 15-degree angle, and keep the tungsten electrode close to the steel without touching it. Touching the steel can contaminate the tungsten, which can lead to poor-quality welds. Use the foot pedal to control the amperage, starting with lower amperage to establish the arc. This step requires precision and practice to master, but it’s crucial for a clean start to your weld.
- Add Filler Rod
Once the arc is stable, begin adding the filler rod. Hold the filler rod at a 15 to 20-degree angle to the weld puddle. Dip the filler rod into the molten puddle, then pull it back slightly, repeating this motion rhythmically. This technique helps you build up the weld bead evenly. ER70S-2 or ER70S-6 filler rods are commonly used for steel, providing solid and clean welds. Make sure to match the filler rod to the type of steel you are welding for optimal results.
- Control Your Speed and Heat
The ability to control heat precisely is one of the key advantages of TIG welding in any MIG vs TIG welding comparison. When welding, maintain a steady hand and consistent speed as you move the torch along the joint. Watch the weld puddle closely, and adjust the heat using the foot pedal to ensure a smooth, even weld. Too much heat can cause warping or burn-through, especially on thinner steel, while too little can result in weak welds with poor penetration.
- Finish the Weld and Cool Down
Once you’ve completed the weld, slowly release the foot pedal to reduce the amperage gradually, preventing craters or cracks at the end of the weld. Let the welded steel cool naturally. Avoid quenching it in water, which can cause brittleness and stress cracks in the weld area. Afterward, clean the weld with a wire brush to remove any surface oxidation and inspect it for defects or areas needing touch-ups.
Conclusion
TIG welding steel is a meticulous process that rewards attention to detail and practice. Each step plays a crucial role in achieving strong, clean welds, from preparing your workspace to controlling heat and speed during welding. Choosing the right tungsten electrode and filler rod, as well as mastering the arc initiation, are also vital to TIG welding steel’s success. Whether you’re a beginner or an experienced welder, mastering TIG weld steel in metal fabrication opens possibilities for creating durable and precise welds in various projects. Remember, practice makes perfect, so don’t hesitate to refine your technique over time.
